- Model Number:SB50
- Type:DIN
- Application:Power
- Gender:Male
- Pins:2P
- Product name:50A Battery Connector with 6AWG Terminals Contacts
- Certificate:UL RoHS
- Connector type:Straight Plug-In style
- Function:Flame-retardant
- Insulation Material:PC
- Contact Material:Sliver Plated Copper

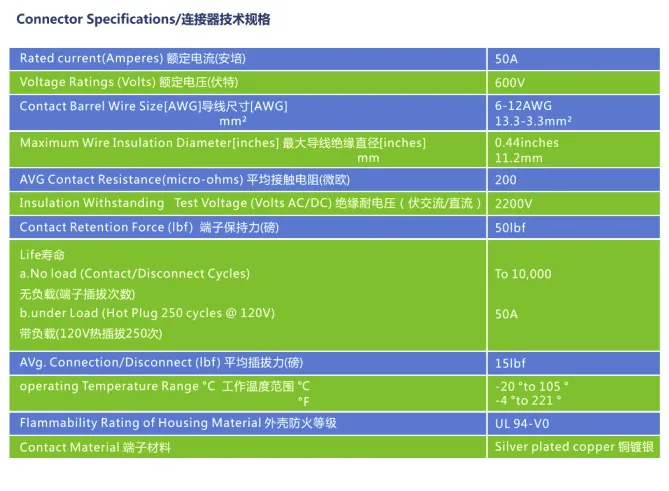

- Rated Voltage:600V
- Rated Current:50A

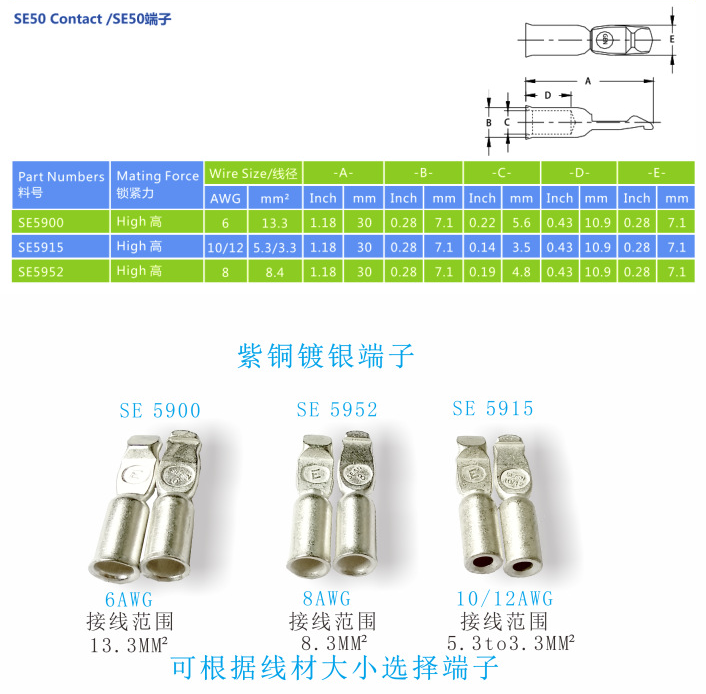

- Contact Barrel Wire Gauge:6-12AWG/13.3-3.3 SQMM
- Insulation Withstanding Voltage:2200V

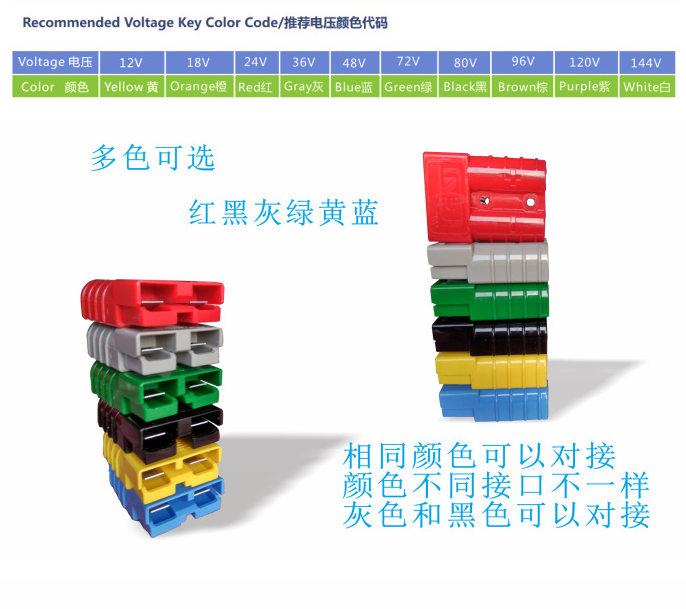

Color: Yellow Red Black Blue Grey
Housing Material: Polycarbonate (PC)
Contact material: Pure copper silver plating
Rated Current: 50A
Rated Voltage: 600V
Voltage:For 12v or 24v Use
Vibration Resistance: Excellent
Impact Resistance: High
Cable Size: 6B&S / 6AWG (up to 13.3 sq mm)
Average contact resistance: 0.05MΩ
Voltage proof: 2200V (DC)
Insulation resistance: 500MΩ
A. No load (Contact/Disconnect Cycles): To 10,000
B. Under load (Hot Plug 250cycless@120V): 50A
Flammability Rating of Housing Material: UL94 V- 0
Operating temperature range: -20°to 105°

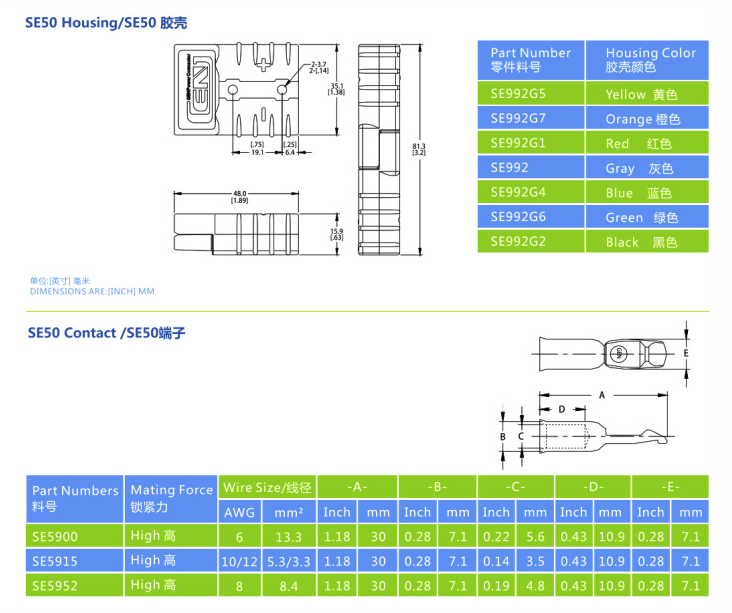

Connector Dimensions: 35.1mm x 48mm x 15.9mm

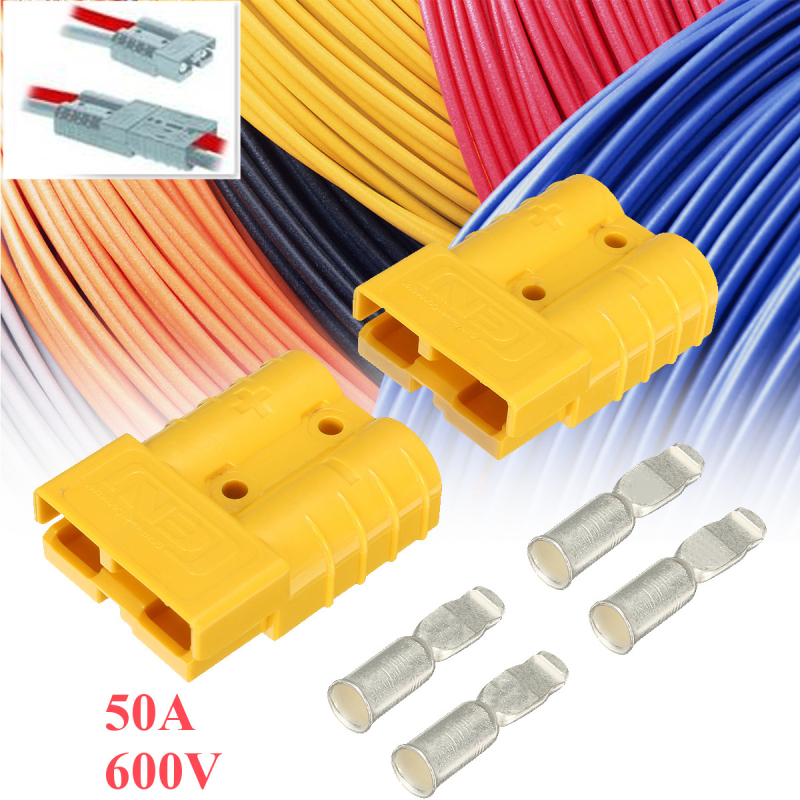

The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.

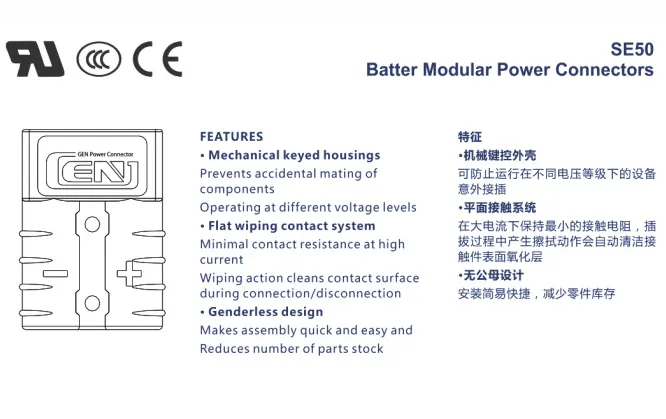

Provide simplified assembly and minimize the number of components.

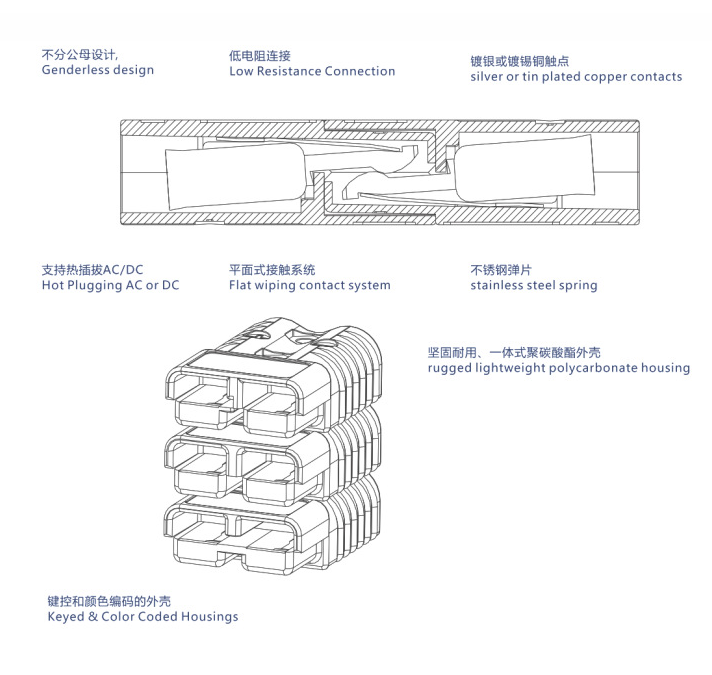

Silver plated copper contacts inside housings that strongly force the contacts together.
Contacts feature a sacrificial tip that allows high current circuit interrupt.
Prevents accidental cross mating of circuits.
For signal transmission or the added safety of a premate ground position.
Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.
